Application
Poultry Feed, Cattle Feed, Shrimp Feed, Pig Feed, Fish Feed, Organic Fertilizers, All types Grains, Bio mass etc.
Features:
• Either gravity fall bottom discharge type or with pneumatic suction arrangement
• Low maintenance cost
• Sturdy and robust construction
• Easy and labour friendly screen and hammer changing
• Rotary feeder can be attached for feedding and hammer mill motor can be sychronized with feeder motor.
• Best possible output ot input ratio
• Vibration dampers are used to absorb the vibrations
• Hammer mill rotor is dynamically balanced
• Hardended hammer in various grades depending upon application
• Screen with wide range of hole diameters from 0.75 mm to 50 mm and various thickness
• Highly efficient due to use of maximum screening are per H.P. and higher tip speeds
• Removal of rotor & changing of bearing is very quick & easy
• A vailable in all grades of stainless steel & M.S. construction as per customers requirements

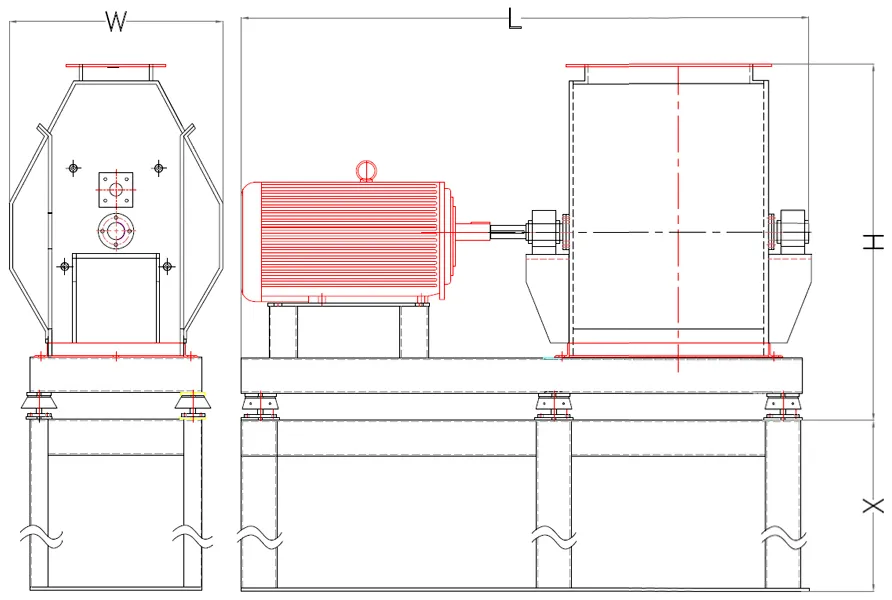

MODEL |
Power REQ. |
W |
L |
H |
X |
KAFSH - 2401 |
10-20 HP |
600 |
1250 |
1000 |
|
KAFSH - 2402 |
12.5-50 HP |
750 |
1400 |
1250 |
|
KAFSH - 2403 |
15-30 HP |
750 |
1575 |
1250 |
|
KAFSH - 3002 |
20-40 HP |
750 |
1750 |
1250 |
|
KAFSH - 3004 |
40-75 HP |
750 |
1920 |
1250 |
|
KAFSH - 3601 |
50-100 HP |
925 |
925 |
1425 |
|
KAFSH - 3602 |
75-120 HP |
925 |
925 |
1425 |
|
KAFSH - 3603 |
100-150 HP |
1140 |
1140 |
1700 |
